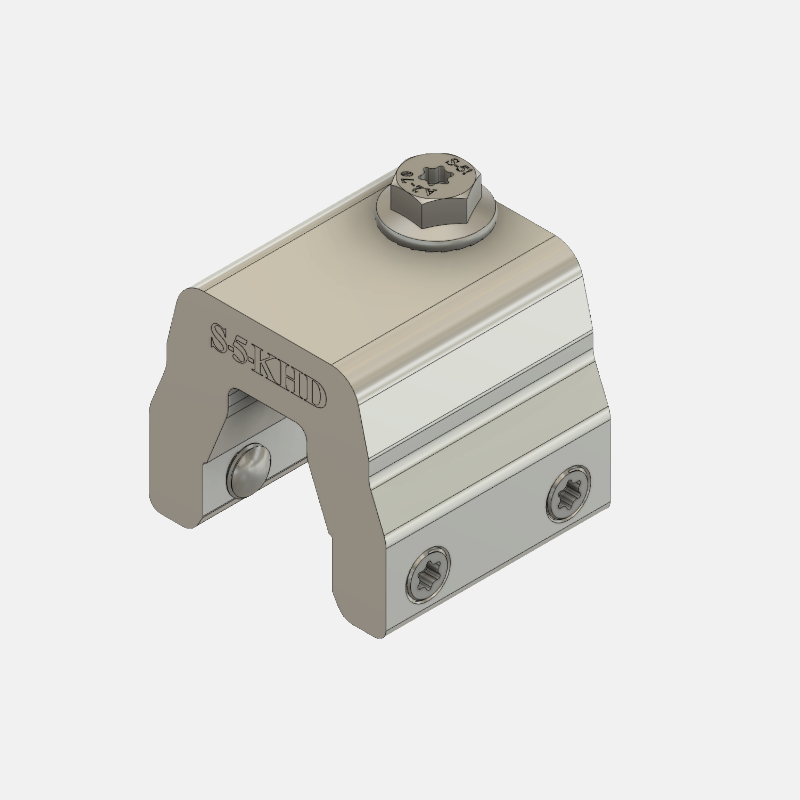

S-5-KHD™ Clamp

Heavy-Duty, Concealed-Fix Metal Roof Clamp Designed for Extra Holding Strength in New Construction Projects.

S-5-KHD Brochure

Seeking a Heavy-Duty KlipRib® (or Similar) Mounting Solution?

The S-5-KHD Clamp stands for Klip-Rib® Heavy Duty. It can be used for new construction but can also be retrofitted for some applications. The most heavy-duty and durable clamp in the S-5! family, the KHD fits the very distinctive profiles of the Lysaght® Klip-Lok 406, McElroy Mirage, Metal Sales Clip-Loc and AEP Span Klip-Rib®.

KHD is significantly stronger than anything else on the market for these profile types. The clamp is geared for snow retention systems and other heavy-duty applications where holding strength is critical.

The insert placed inside the intermediate seam provides for a holding capacity of more than 3,000 pounds. Such incredible strength requires fewer rows of snow guards than any other option.

Rigorous load testing is performed on all S-5! clamps. Parallel-to-seam testing (drag load) is performed on all standard clamps.

Your Attachment Solution for “Super-Duty” Applications to Klip-Rib and Similar Concealed-Fix Metal Roofs

Choose the KHD to mount fall protection, snow guards and other “super-duty” applications to Klip-Rib and similar concealed-fix metal roofs.

KHD can be used only at the eave location of pre-existing roofs. When more than one row of snow retention is needed, the S-5-K Grip Snow can be used to supplement with additional rows and does not require the in-seam insert. (Contact [email protected] for design assistance).

Lighter-duty applications can be handled with the S-5-K Grip or K-Grip Mini.

Be sure to check out the many other features on the clamp overview page.

MSRP:

Minor Box: $13.37 Qty: 30

Master Box: $12.93 Qty: 90

*Pricing above is per clamp in USD. Prices vary based on region and other factors. Pricing improves with order quantity. Broken boxes may be subject to handling charges. Call your Authorized S-5! Distributor for current pricing.

Use Our Project Configurator

Inserts for the S-5-KHD:

S-5-KHD Clamp with 3-inch insert

S-5-KHD 3-inch insert

S-5-KHD Clamp with 6-inch insert

S-5-KHD 6-inch insert

The S-5-KHD Works for the Following Roofs:

Spacer

Concealed-Fix

Product Specifications:

  • Existing construction – S-5-KHD 3″ insert available - slides into the rib at the eave
  • New construction – S-5-KHD 6″ insert available - installed as the roof goes on
  • Can be used in conjunction with the S-5-K Grip Snow when more than one row of snow retention is needed on a retrofit project
  • Four T-30 Torx round-point setscrews (Torx bit tip provided)
  • One M8 bolt included

Does the S-5-KHD Fit Your Roof Profile?

s-5-metal-roof-clamp-solar-install

How to Install the S-5-KHD Clamp on Your Roof Profile*

For installation at the eave, slide the insert into the rib at the desired location. Position the clamp over the rib at the insert location. Tighten the Torx Drive (T-30) setscrews to the specified tension. Then, affix ancillary items using the bolt (provided with standard KHD clamp). For installation on new construction, snap the 6” insert into the roof profile as it is laid down. Before it is set in place, be sure to note the location of the insert for installation of the clamp at a later time.

*See more detailed installation instructions in the PDF download

*S-5! clamps may be moved in the event of initial misplacement. However, due to the ensuing oxidation process which acts as a natural thread lock, we can express no opinion to the performance of a clamp once it has been removed and reinstalled or the ability to remove the clamp after this process has occurred.

S-5-KHD Installation Instructions

s-5-metal-roof-clamp-solar-install

Have More Questions?

Submit your information by clicking the form below, and we’ll get back to you almost immediately.

FAQs

How are S-5! clamps tested?
What spacing should be used with S-5! clamps for PV assemblies?
Can you save money by mounting solar on a standing seam metal roof?
What profiles will S-5! clamps not fit?
