S-5-Q™ Clamp

Designed for “Bulb-Shaped” Roof Profiles up to 1.14” (29 mm) in Diameter.

S-5-Q Brochure

A Heavy-Duty Attachment Solution for “Bulb-Shaped” Profiles

The S-5-Q clamp (“Q” represents the shape of the clamp) allows for the attachment of snow guards and other heavy-duty applications to metal roof panels featuring large, round (such as Zip-Rib®, BEMO, Kalzip®) and similar “bulb” seam configurations. The clamp features a two-piece design that makes it easy to install anywhere along the seam.

The Q will also fit smaller, “bulb-shaped” profiles (dia ≤ 0.75”; 19 mm) if the seam is not properly closed. (Also, check out the more cost-effective S-5-Z for these applications when seams are properly closed).

Minis Available

The Q Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.

All standard and Mini clamps undergo rigorous load testing. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (drag load) is performed on all standard clamps.

Be sure to check out the many other features on the clamp overview page.

The Z is a better buy for seam diameters of  0.75” (19 mm) or smaller when seamed correctly. Choose the Q when the diameter of the finished seam is larger.

MSRP:

Minor Box:

$12.05 Qty: 15 | $7.21 (Mini) Qty: 25

Master Box:

$11.65 Qty: 60 | $6.97 (Mini) Qty: 100

*Pricing above is per clamp in USD. Prices vary based on region and other factors. Pricing improves with order quantity. Broken boxes may be subject to handling charges. Call your Authorized S-5! Distributor for current pricing.

Use Our Project Configurator

The S-5-Q Works for the Following Roofs:

Spacer

Standing Seam Bulb Shape

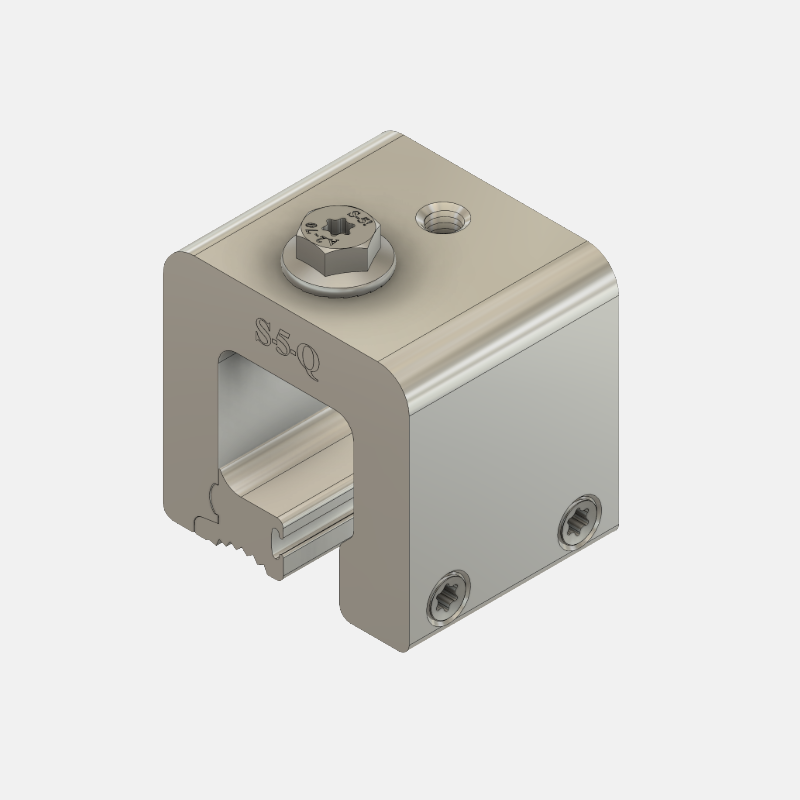

S-5-Q

S-5-Q Mini

Spacer

Product Specifications:

  • Fits all of the profiles the Z fits and also accommodates standing seam metal roof panels with large, round “bulb” seam configurations up to 1.14” (29 mm) in diameter
  • Heavy-duty applications, such as snow retention
  • Two T-30 Torx round-point setscrews (Torx bit tip provided)
  • One M8 bolt included
Spacer

Does the S-5-Q Fit Your Roof Profile?

S-5-metal-roof-walkway

How to Install the S-5-Q Clamp on Your Roof Profile*

Using the ergonomic finger grip “tail” of the insert, position the insert at the desired location against the base of the seam and just below the bulbous portion (either side of the seam). Rotate the clamp into place over both the seam and insert. Hold this assembly in place with one finger, while tightening the round point Torx Drive (T30) setscrews to the specified tension. Then, affix ancillary items using the bolt (provided with standard Q clamp; sold separately for the Q Mini)

*See more detailed installation instructions in the PDF download below.

*S-5! clamps may be moved in the event of initial misplacement. However, due to the ensuing oxidation process which acts as a natural thread lock, we can express no opinion to the performance of a clamp once it has been removed and reinstalled or the ability to remove the clamp after this process has occurred.

S-5-Q Installation Instructions

S-5-metal-roof-walkway

Have More Questions?

Submit your information by clicking the form below, and we’ll get back to you as soon as possible.

FAQs

How much load will S-5! clamps hold?
How do I know what clamp to use for my roof if I don't know my roof manufacturer and profile?
What profiles will S-5! clamps not fit?
How are S-5! clamps tested?
