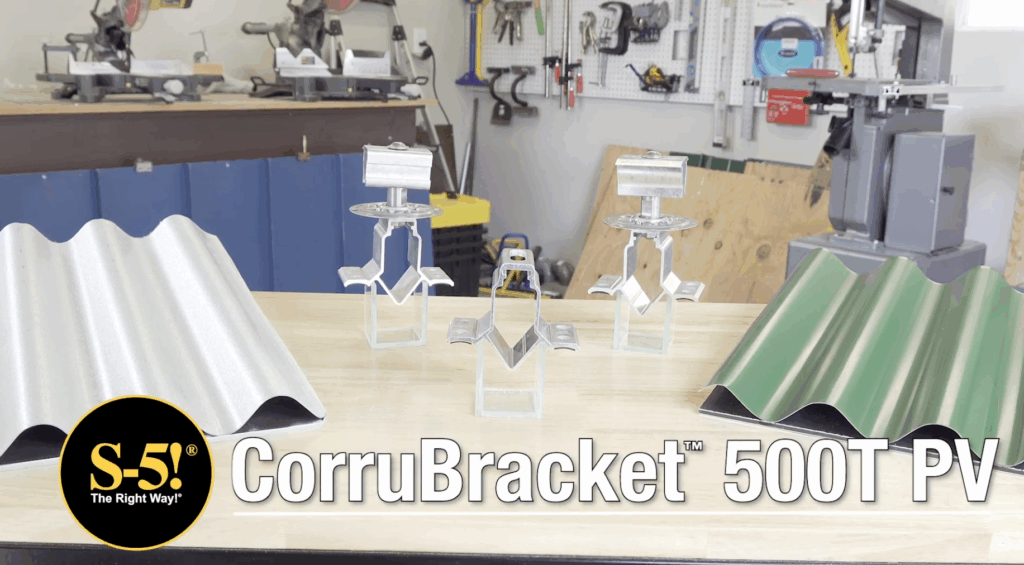

CorruBracket™ 500T PV
High-Profile, Top-Fixed Bracket Provides Optimal Airflow Above the Valley of Corrugation.
CorruBracket 500T PV Brochure
Specifically Designed to Marry with the PVKIT®
With the CorruBracket 500T PV, the “500” bracket designation refers to metric dimensioning. See the “100” for imperial compatibility.
The 500T PV is designed to be paired with the S-5-PVKIT for direct-attach™ solar mounting. The 500T PV features a slotted hole for 25 mm of adjustability, as well as an open channel for wire management.
Choose the 500T PV for mounting to 16-22 mm (H) x 76 mm rib-pitch corrugated roofing profiles.
Attachment Versatility
The 500T PV fastens into the sheeting-only (self-piercing screws provided), allowing you to position the metal roof bracket anywhere along the roof ribs. You can also use the 500T PV for attachment of solar inverters and/or optimizers. The bracket’s “V” configuration helps prevent crushing of the ribs when PV modules experience down-force such as snow loads.
Be sure to check out the many other features on the bracket overview page.
Find out if CorruBracket 500T PV is the right bracket for your next project by checking out our load test tables to the left.
CorruBracket 500T PV Works for the Following Roofs:
Exposed-Fastened, Corrugated
CorruBracket 500T PV Product Specifications:
- 16-22 mm (H) x 76 mm rib-pitch corrugated roofing
- Mounts directly into crest of corrugation, straddling valley
- Four pre-punched holes in base
- Open channel for wire containment/management
- Fastens into sheeting-only with provided stainless-capped piercing fasteners
- Bracket allows module glass to sit 100+ mm above valley of corrugation
- Slotted top hole offers 25+ mm of adjustability
- PVKIT® 2.0 compatible
- Allows for attachment of solar inverters and/or optimizers
- 4 self-piercing screws and 1 M8 nut included
How to Install CorruBracket 500T PV on Your Roof Profile*
No surface preparation is necessary. Simply wipe away excess oil and debris, align and apply.
Secure bracket directly into the crest of the corrugation by driving the provided screws into the pre-punched holes or by pre-drilling the proper-sized hole through the pre-punched holes and riveting. The slotted top hole accommodates standard M8 nut connections.
*See more detailed installation instructions in the PDF download below.
Have More Questions?
Submit your information by clicking the form below, and we’ll get back to you almost immediately.
FAQs
Should I use additional sealant around the brackets?
No, it will deteriorate with exposure and can then do more harm than good.
How does S-5! ensure its brackets are weathertight?
S-5! brackets feature integrated sealant reservoirs to prevent over-compression of the seal and to protect the sealant from UV degradation. No risky, field applied sealants are ever used. No need to source sealant materials. Instead, you get permanence, convenience, maintenance freedom, ease of installation, a complete assembly, and peace of mind.
Double Seal
EPDM factory-seal is used on sheeting-only attached brackets that mount on roof ribs or corrugations out of the drainage plane. This creates a “double-seal” by way of the EPDM washer on the fasteners from above and the pre-applied EPDM on the feet of the bracket from below.
Triple Seal
A watertight, factory-applied, 60-year butyl polymer seal is used on our brackets that attach to the decking or structure in the drainage plane of the roof. This butyl polymer along with the EPDM seal on the fasteners forms what we call a “triple seal”. The first seal is formed by the washer on the fastener from the top side. The second seal is the butyl polymer beneath the feet of the bracket, and the third is formed as the fastener is driven into the substrate, pulling butyl polymer into the threads of the fastener.
How do I find out what my substrate is / and then how do I determine the best method to attach my brackets?
Engineered metal buildings have steel purlins. Post-frame buildings generally have wood purlins. Residential and light commercial wood frame construction generally has wood deck.
