S-5-K Grip™ Clamp

Attach Utilities to Concealed-Fastened Roofs - KlipLok®, Clip-Loc, KlipRib, Speed Deck, Loc-Rib & Mirage® & Similar Profiles

S-5-K Grip Brochure

Looking for Increased Holding Strength for Mounting to Klip-Lok® and Similar Metal Roofs?

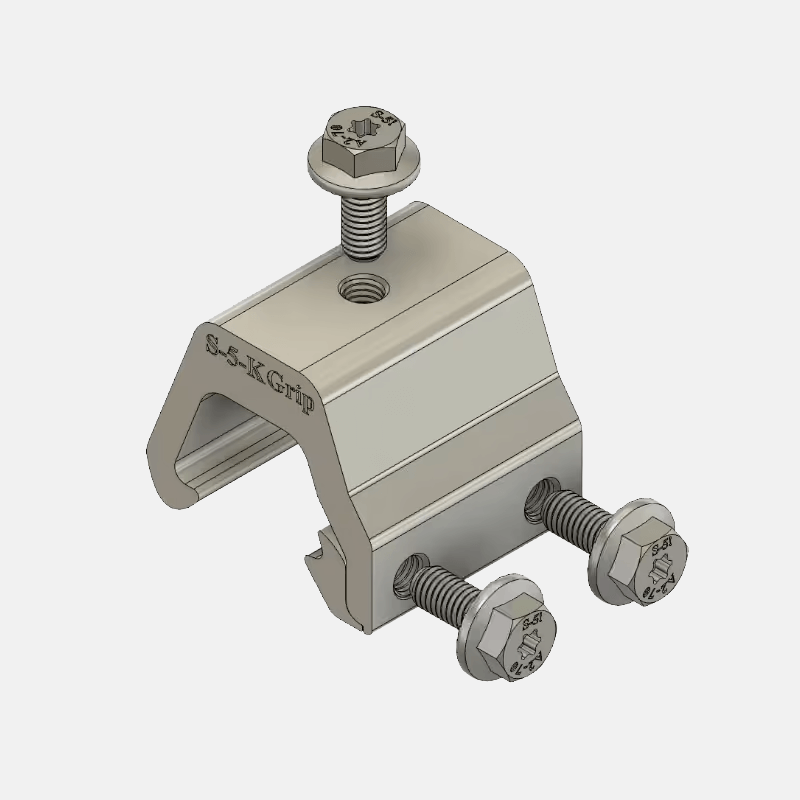

The S-5-K Grip (“K” stands for KlipLok®), is designed to fit the KlipLok and similar profiles. Two different inserts (sold separately) compensate for exact rib dimensions.

The K Grip eliminates the large moment arm typical of some competitive clamps, and its mounting bolt sits concentrically on the seam, increasing load resistance.

Unlike other S-5! clamps, the K Grip uses side-bolts rather than setscrews for attachment. The flanged-head bolts also prevent over-compression of the seam and eliminate the need for calibrated tensioning.

Minis Available

The K Grip also comes in a mini version. It is smaller than the (standard) K Grip and has only one side-bolt

Rigorous load testing is performed on all S-5! clamps. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (drag load) is performed on all standard clamps.

K Grip mounts a variety of utilities, and solar to Klip-Lok® and similar profiled metal roofs.

For snow retention & super heavy duty applications, see S-5-KHD.

K Grip Snow is available for use with S-5-KHD and ColorGard assemblies. The only difference is the location of the top bolt hole. Be sure to check out the many other features on the clamp overview page.

MSRP:

Minor Box:

$7.93  Qty: 20 | $4.73 (Mini) Qty: 40

Master Box:

$7.66 Qty: 80 | $4.57 (Mini) Qty: 160

*Pricing above is per clamp in USD. Prices vary based on region and other factors. Pricing improves with order quantity. Broken boxes may be subject to handling charges. Call your Authorized S-5! Distributor for current pricing.

Use Our Project Configurator

Inserts for the S-5-K Grip and S-5-K Grip Mini:

Select the insert below that fits your specific roof profile. Each insert has a unique shape to allow for correct fit and provides increased holding strength over other attachment options. If your profile is not listed, please contact us to request a sample for testing.

S-5-GX 10

  • LYSAGHT KLIP-LOK® 406
  • McElroy Metal Mirage
  • AEP Span Klip-Rib®
  • Metal Sales Clip-Loc
  • SpeedDeck® SpeedDeck®
  • Safintra Saflok 410
  • Safintra Saflok 700
  • Domico Dach®
  • And, other similar profiles

S-5-GX 50

  • LYSAGHT KLIP-LOK Classic® 700
  • LYSAGHT KLIP-LOK 700 Hi-Strength®
  • Stramit® Speed Deck Ultra®
  • Fielders KingKlip® 700
  • And, other similar profiles

S-5-GXM 10 (Mini)

  • LYSAGHT KLIP-LOK® 406
  • McElroy Metal Mirage
  • AEP Span Klip-Rib®
  • Metal Sales Clip-Loc
  • SpeedDeck® SpeedDeck®
  • Safintra Saflok 410
  • Safintra Saflok 700
  • Domico Dach®
  • And, other similar profiles

S-5-GXM 50 (Mini)

  • LYSAGHT KLIP-LOK Classic® 700
  • LYSAGHT KLIP-LOK 700 Hi-Strength®
  • Stramit® Speed Deck Ultra®
  • Fielders KingKlip® 700
  • And, other similar profiles

The S-5-K Grip Works for the Following Roofs:

Spacer

Concealed-Fix

S-5-K Grip

S-5-K Grip Mini

Spacer

Product Specifications:

  • Developed for best suitability to  Klip-Rib®, Klip-Lok® and other concealed-fix, snap-together profiles
  • Design utilizes multiple inserts (sold separately) to accommodate variations in brand-specific rib dimensions
  • Mounting bolt directly at center of seam (included)
  • Two side-bolts included
Spacer

Does the S-5-K Grip Fit Your Roof Profile?


Conceal Fix Narrow


Conceal Fix Wide

How to Install the S-5-K Grip Clamp on Your Roof Profile*

Place the clamp insert under the shoulder of the rib at the desired location. Position the clamp by rolling it over the rib and snap over the insert. Tighten the flanged bolts at the base of the clamp until they seat tightly to the clamp body. The bolts will engage the divots in the K Grip insert.

A mounting bolt is provided with K Grip and can be purchased separately (in various lengths) for the K Grip Mini.

*See more detailed installation instructions in the PDF download

*S-5! clamps may be moved in the event of initial misplacement. However, due to the ensuing oxidation process which acts as a natural thread lock, we can express no opinion to the performance of a clamp once it has been removed and reinstalled or the ability to remove the clamp after this process has occurred.

S-5-K Grip Installation Instructions

Have More Questions?

Submit your information by clicking the form below, and we’ll get back to you as soon as possible.

FAQs

How much load will S-5! clamps hold?
How much load will Mini (one setscrew) clamps hold in the parallel load orientation?
What spacing should be used with S-5! clamps for PV assemblies?
What is the correct tightening torque for S-5! setscrews?
