S-5-N™ Clamp

Angled Setscrews and an Innovative Insert Ensures a Superior Fit to Most Nail Strip Profiles.

S-5-N & Mini Brochure

Your Mounting Solution for 1” (25 mm) Nail-Flange Metal Roof Profiles

The S-5-N (“N” stands for nail strip) is a non-penetrating, standing seam metal roof (SSMR) clamp.

The N fits popular 1″ nail strips, such as: Taylor Metals’ Easy Lock™, ASC Building Products’ Skyline Roofing®, McElroy Metals’ Meridian, New Tech Machinery’s FF100 and roofing types with similar profiles.

For nail strip profiles with 1.5” seam height, see “S-5-N 1.5.

Minis Available

The N Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.

All standard and Mini clamps undergo rigorous load testing. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (drag load) is performed on all standard clamps.

Choose the N to mount to nail flange metal roof profiles with a base of rib dimension ≤ .82” (20 mm). Check also the S-5-NH 1.5 for matching to other seam dimensioning, such as NewTech FF150 and VicWest Prestige. Be sure to check out the many other features on the clamp overview page.

MSRP:

Minor Box:

$5.75 Qty: 30 | $5.06 (Mini) Qty: 50

Master Box:

$5.56 Qty: 120 | $4.89 (Mini) Qty: 200

*Pricing above is per clamp in USD. Prices vary based on region and other factors. Pricing improves with order quantity. Broken boxes may be subject to handling charges. Call your Authorized S-5! Distributor for current pricing.

Use Our Project Configurator

The S-5-N Works for the Following Roofs:

Spacer

Nail Strip

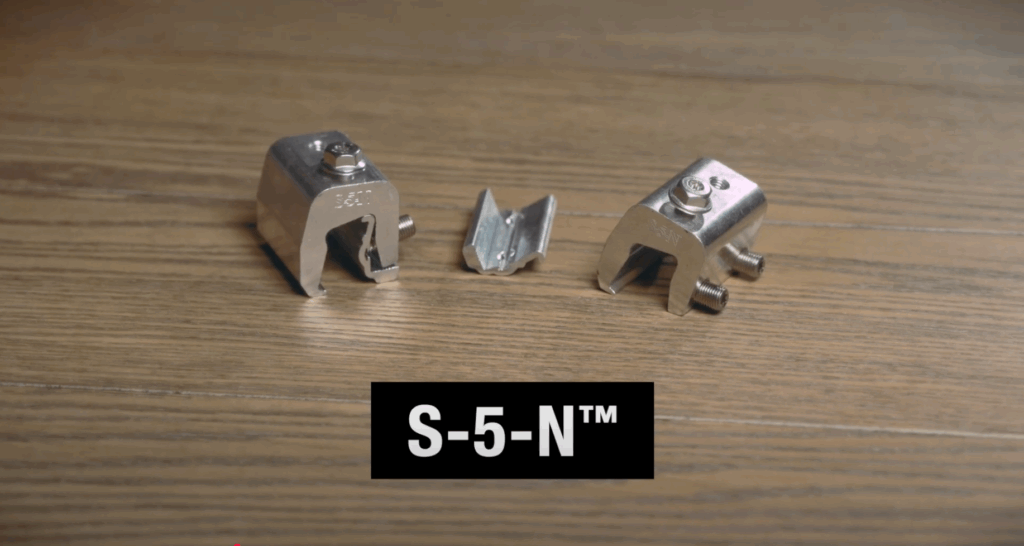

S-5-N

S-5-N Mini

Spacer

Product Specifications:

  • Angled setscrews for easy installation; no special tools required
  • Special design for “nail-flange” SSR profiles ≤ 1” (25 mm) in height and with a base of rib dimension < .82” (20 mm)
  • Clamp insert facilitates best-fit without damage to panel seam
  • Use for heavy-duty applications, such as snow retention
  • Two T-30 Torx round-point setscrews (Torx bit tip provided)
  • One M8 bolt included
Spacer

Is the S-5-N the Right Choice for Your Roof Profile?

metal roof clamp solar install

How to Install the S-5-N Clamp on Your Roof Profile*

Place the insert against the base of the seam opposite the overlap side at the desired location. Place the clamp over the seam and insert. Tighten the Torx Drive (T-30) setscrews against the insert to the specified tension. Then, affix ancillary items using the bolt (provided with standard N clamp; sold separately for the N Mini).

Special design of the S-5-N’s angled wall and nose engages the angular overlap portion of nail strip profiles during installation.

*See more detailed installation instructions in the PDF download below.

*S-5! clamps may be moved in the event of initial misplacement. However, due to the ensuing oxidation process which acts as a natural thread lock, we can express no opinion to the performance of a clamp once it has been removed and reinstalled or the ability to remove the clamp after this process has occurred.

S-5-N Install Instructions

metal roof clamp solar install

Have More Questions?

Submit your information by clicking the form below, and we’ll get back to you as soon as possible.

FAQs

How much load will S-5! clamps hold?
How much load will Mini (one setscrew) clamps hold in the parallel load orientation?
What spacing should be used with S-5! clamps for PV assemblies?
Which clamp works best on nail strip, nail flange, snap-together profiles?
