How Facet™ Mount made a 4.88 MW, non-ballasted solar array possible on a fully adhered TPO roof—delivering utility-scale performance, long-term durability and proven reliability under extreme environmental conditions.
The warehouse roof was a non-ballasted, fully adhered TPO system with an 8-inch clearance requirement – eliminating ballast as an option and sharply limiting attachment choices – yet still needed to support a system large enough to offset more than 60% of building demand.
The design also had to handle Northeast extremes: freeze/thaw cycling, hurricane-level winds and heavy snow loads, all while keeping point loads as low as possible to protect the roof and maintain watertight integrity.

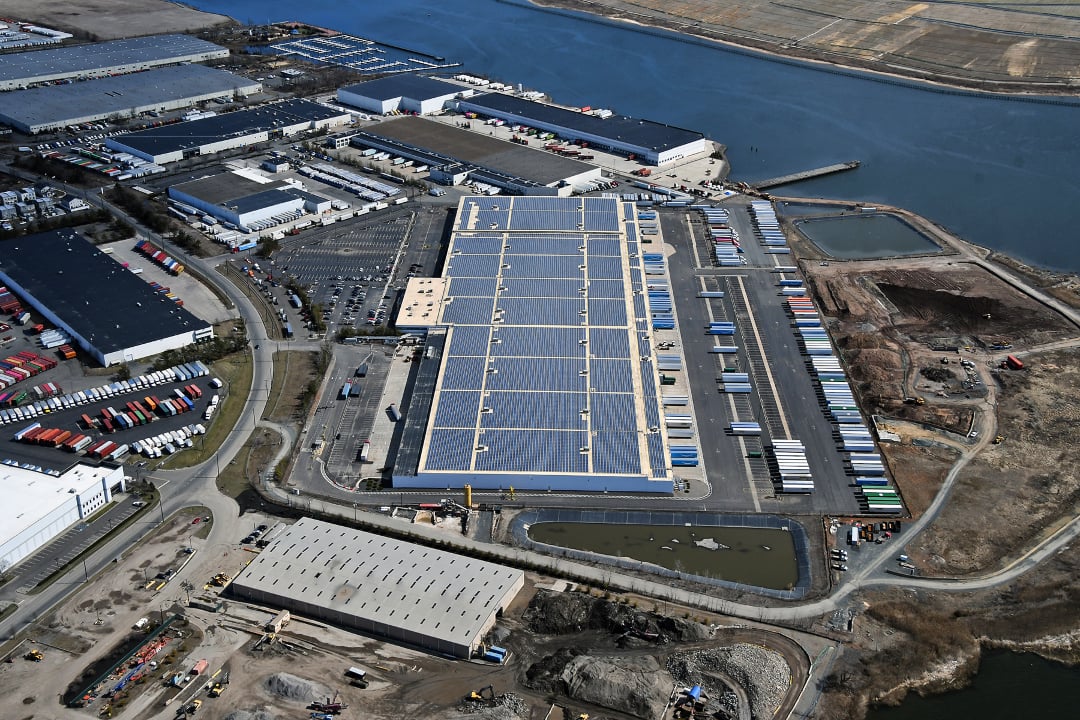

White Rose Foods deployed a 4.88 MW rooftop solar array at its grocery distribution warehouse in Carteret, New Jersey.
The system consists of more than 22,000 solar panels generating approximately 6.2 million kWh annually, replacing roughly 6 million kWh of grid power each year with clean, renewable energy.
Installed on a fully adhered TPO roof, the project required careful consideration of structural loading, wind uplift, and long-term roof durability due to its unprecedented scale.
Solar project size
Solar panels installed
Annual energy production

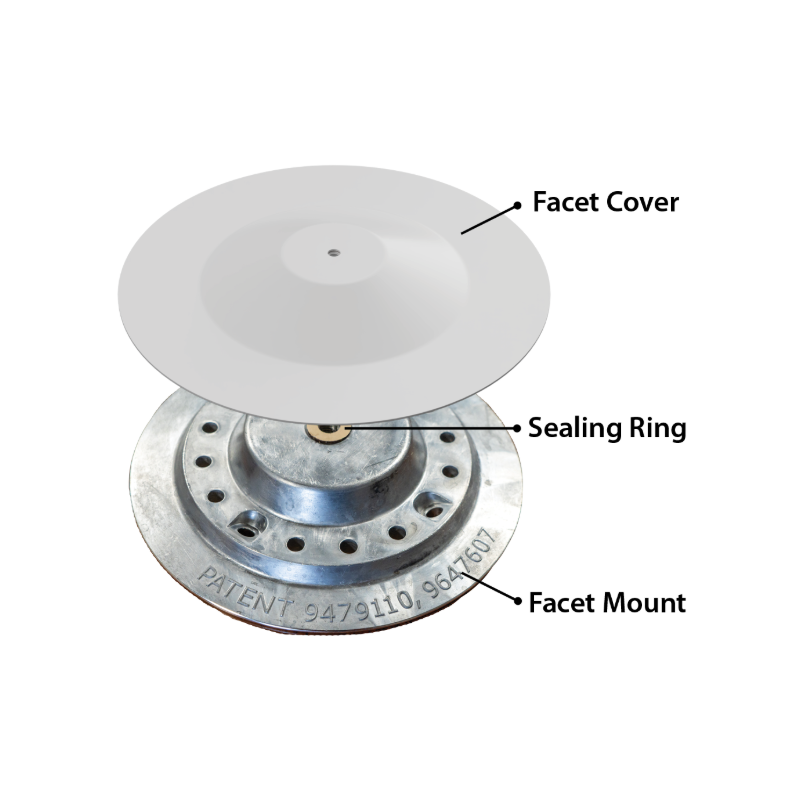

Facet™ Mount enabled a non-ballasted, nearly 5 MW rooftop solar system on the fully adhered TPO roof, where ballast and traditional attachment methods were not viable.
Engineered to withstand freeze/thaw cycles, hurricane-level winds and heavy snow loads, the system incorporated waterproof washers and heat-welded flashing made from the same roofing membrane to ensure long-term watertight performance. Installation efficiency further supported the project’s scale, with each mount installed in under six minutes.
The result was a landmark East Coast installation that validated Facet Mount’s durability and established a repeatable behind-the-meter model for utility-scale solar on complex commercial rooftops.
Savings in shippings costs
Minutes install time per mount
“When it comes to solar energy systems, especially solar photovoltaic systems, bigger is better, and the biggest one to date is the 5 MW rooftop system proposed for the White Rose Building in Carteret, New Jersey. The building is both the corporate headquarters and a food distribution hub for White Rose Foods, the largest independent wholesale food distributor in the New York City metropolitan area.”
PV Magazine
