S-5-V™ Clamp

A Cost-Effective Mounting Solution for Most Vertical, Machine-Folded, Standing Seams.

S-5-V Brochure

Seeking a Versatile Clamp for Vertical Machine-Folded Seams?

The S-5-V (“V” stands for vertical) is a cost-effective solution for most machine-folded seams in vertical orientation and within certain dimensions. It is non-penetrating and one of our most popular standing seam metal roof clamps.

There may be other S-5! options more appropriate or cost-effective for your specific application.

Minis Available

The V Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.

All standard and Mini clamps undergo rigorous load testing. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (drag load) is performed on all standard clamps.

Be sure to check out the many other features on the clamp overview page.

Standard S-5-V clamp metal roof

MSRP:

Minor Box:

$5.93 Qty: 30 | $3.75 (Mini) Qty: 50

Master Box:

$5.73 Qty: 120 | $3.63 (Mini) Qty: 200

*Pricing above is per clamp in USD. Prices vary based on region and other factors. Pricing improves with order quantity. Broken boxes may be subject to handling charges. Call your Authorized S-5! Distributor for current pricing.

Use Our Project Configurator

Standard S-5-V clamp metal roof

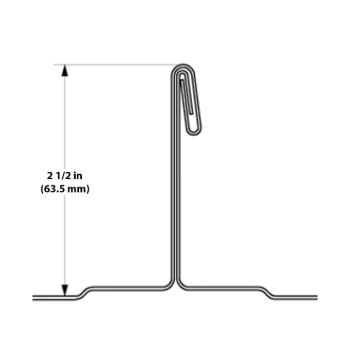

The S-5-V Works for the Following Roofs:

Spacer

Standing Seam

Product Specifications:

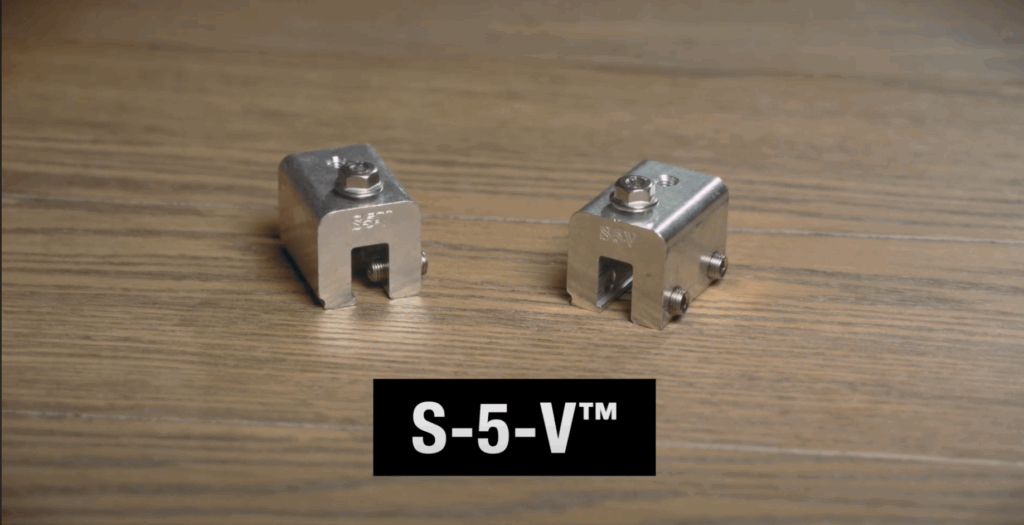

S-5-V

S-5-V Mini

Spacer

  • Accommodates same vertically-oriented seams as
    the S-5-U
  • Lower cost than the S-5-U
  • Specifically designed for vertical, mechanically-folded seams
  • Use for heavy-duty applications, such as snow retention
  • Two T-30 Torx round-point setscrews (Torx bit tip provided)
  • One M8 bolt included
Spacer

Is the S-5-V the Best Choice for Your Roof Profile?

Installation of solar panels

How to Install the S-5-V Clamp on Your Roof Profile*

Place the clamp over the seam at the desired location and tighten the Torx Drive (T-30) setscrews to the specified tension. Then, affix ancillary items using the bolt (provided with standard V clamp; sold separately for the V Mini).

*See more detailed installation instructions in the PDF download below.

*S-5! clamps may be moved in the event of initial misplacement. However, due to the ensuing oxidation process which acts as a natural thread lock, we can express no opinion to the performance of a clamp once it has been removed and reinstalled or the ability to remove the clamp after this process has occurred.

S-5-V Installation Instructions

Installation of solar panels

Have More Questions?

Submit your information by clicking the form below, and we’ll get back to you as soon as possible.

FAQs

How much load will S-5! clamps hold?
How much load will Mini (one setscrew) clamps hold in the parallel load orientation?
What spacing should be used with S-5! clamps for PV assemblies?
What profiles will S-5! clamps not fit?
