S-5-H90™ Clamp

Mount Snow Guards and Heavy-Duty Applications to Panels With a Horizontal Seam Greater Than 0.65″ (16.5 mm).

S-5-H90 & Mini Brochure

Looking for a Solution to Fit Horizontal, Single-Folded Seams?

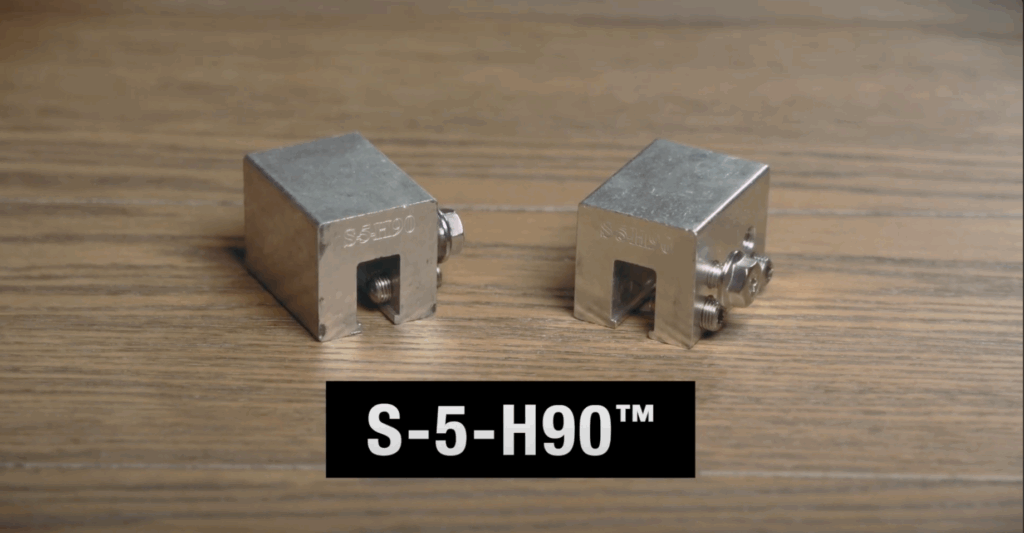

The S-5-H90 (“H” for Horizontal seam) is designed for standing seam panels with horizontal, single-folded seams.

For horizontal seam dimensions greater than 0.65” (16.5 mm), the H90 offers you a secure and cost-effective utility mounting attachment solution. The setscrews are top-down oriented. For horizontal (or “angle seams”) of .5” (13mm) or less, see the S-5-S.

The H90 fits all standing seams that the S-5-U fits horizontally and fits fully seamed profiles the S-5-H fits vertically - but is more cost-effective than either.

Minis Available

The H90 Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.

Rigorous load testing is performed on both standard and Mini clamps. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (along the seam or drag load) is performed on all standard clamps. Be sure to check out the many other features on the clamp overview page.

MSRP:

Minor Box:

$6.18 Qty: 30 | $3.96 (Mini) Qty: 50

Master Box:

$5.98 Qty: 120 | $3.83 (Mini) Qty: 200

*Pricing above is per clamp in USD. Prices vary based on region and other factors. Pricing improves with order quantity. Broken boxes may be subject to handling charges. Call your Authorized S-5! Distributor for current pricing.

Use Our Project Configurator

The S-5-H90 Works for the Following Roofs:

Spacer

Standing Seam

S-5-H90

S-5-H90 Mini

Spacer

Product Specifications:

  • Designed for standing seam panels with horizontal, single-folded seams
  • Secure and cost-effective solution for horizontal seam dimensions ≥ 0.65” (16.5 mm)
  • Fits all standing seams the S-5-U fits horizontally and fits fully seamed profiles the S-5-H fits vertically - but is more cost-effective than either.
  • Heavy-duty applications, such as snow retention
  • Two T-30 Torx round-point setscrews - side installation - (Torx bit tip provided)
  • One M8 bolt included
Spacer

Does the S-5-H90 Fit Your Roof Profile?


2" Single Fold


2-1/2" Single Fold

How to Install the S-5-H90 Clamp on Your Roof Profile*

Installation is as simple as placing the clamp on the seam and tightening the round point Torx Drive (T30) setscrews to the specified tension. After the clamp is installed, affix ancillary items using the top stainless steel bolt provided (provided on the standard clamp and purchased separately for the Mini).

*See more detailed installation instructions in the PDF download below.

*S-5! clamps may be moved in the event of initial misplacement. However, due to the ensuing oxidation process which acts as a natural thread lock, we can express no opinion to the performance of a clamp once it has been removed and reinstalled or the ability to remove the clamp after this process has occurred.

S-5-H90 Installation Instructions
