S-5-MX™ Clamp

An Economical Solution for Both Single-Folded and Double-Folded Profiles.

S-5-MX Brochure

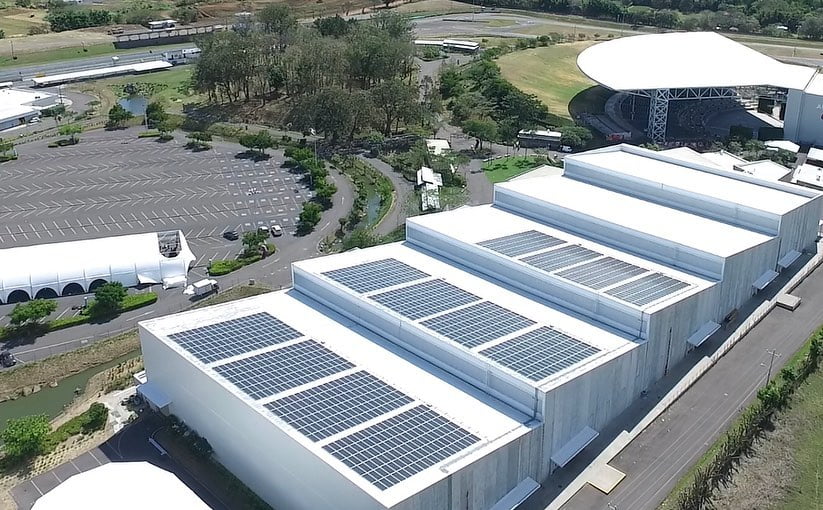

Fix Solar Panels on Single and Double-Folded Seams

The S-5-MX clamp (“MX” for compatibility with panels common in Mexico) is a single part that fits on both single-folded and double-folded profiles. It is the perfect solution for direct-attach™ mounting (no need to use rails) with the PVKIT® 2.0. The MX can also be used to attach lifelines, walkways, combiner boxes, conduit, cable trays, and other Balance of System components (BOS).

Seamlessly install the clamp on the Knudson KR18, NewTech TRQ250, and the Zimmerman TSS2500, without puncturing the seam material and without violating the manufacturer warranty.

Minis Available

The MX Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.

The H Mini clamp is a bit shorter than the standard MX with one setscrew rather than two

All standard and Mini clamps undergo rigorous load testing. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (drag load) is performed on all standard clamps.

Be sure to check out the many other features on the clamp overview page.

S-5-MX ISO NO DIMS

MSRP:

Minor Box:

$---- Qty: 15 | $---- (Mini) Qty: 25

Master Box:

$---- Qty: 60 | $---- (Mini) Qty: 100

*Pricing above is in USD. Prices vary based on region and other factors. Pricing improves with order quantity. Broken boxes may be subject to handling charges. Call your Authorized S-5! Distributor for current pricing.

Use Our Project Configurator

S-5-MX ISO NO DIMS

The S-5-MX Works for the Following Roofs:

Spacer

Standing Seam

S-5-MX

S-5-MX Mini

Spacer

Product Specifications:

  • For standing seam panels with single-folded or double-folded profiles
  • No need to choose between S-5-U, S-5-V, S-5-H90 or S-5-H
  • Two T-30 Torx round-point setscrews (Torx bit tip provided)
  • One M8 bolt included
Spacer

Does the S-5-MX Fit Your Roof Profile?

PVKIT-S-5-MX-Clamp-2

How to Install the S-5-MX Clamp on Your Roof Profile*

Simplemente inserte el único tornillo de fijación y coloque la abrazadera en el engargolado o junta alzada. Luego aplique la cantidad apropiada de torque según las instrucciones de instalación. La abrazadera ahora está lista para el montaje de módulos solares y una variedad de otros accesorios en techos metálicos.

*Vea las instrucciones de instalación más detalladas en la descarga del PDF que aparece a continuación.

*S-5! las abrazaderas se pueden mover en caso de una mala instalación inicial. Sin embargo, debido al proceso de oxidación subsiguiente que actúa como un bloqueador natural de los tornillos, no podemos expresar ninguna opinión sobre el rendimiento de una abrazadera una vez que se ha quitado y reinstalado o la capacidad de quitar la abrazadera después de que haya ocurrido este proceso.

S-5-MX Installation Instructions

PVKIT-S-5-MX-Clamp-2
